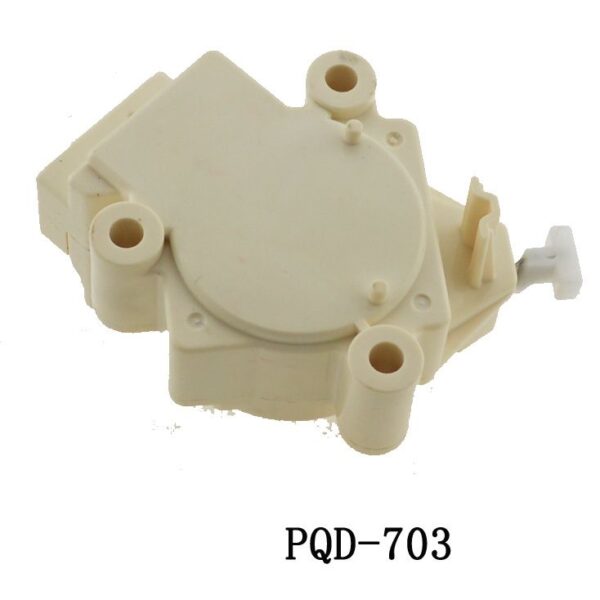

PQD-703 3 Pin LG Washing Machine Drain Control Motor
৳ 850.00৳ 950.00 (-11%)
PQD-703 3 PINS LG WASHING MACHINE DRAIN CONTROL MOTOR FOR PULLING DRAIN VALVE AND CLUTCH
Mainly used for washing machines dishwasher and other household appliances, used to pull the clutch and drain valve, release the residual water after washing.
PQD-703 SERIES PQD-703 3 PINS
———————–Basic parameter
| Rated Voltage(V) |
220-240/110-127 |
| Rated Frequency (Hz) | 50/60Hz |
| Working Current (mA) | <30mA/70mA |
| Working Stroke(mm) | 26/13 |
| Traction Force (N) | >80N |
| Recovery Force (N) | Working life | Install Pitch(mm) | Position Pitch(mm) |
| ≤10 | >50000 | 65±0.2 47.5±0.2 | 37 ±0.2 |
Basic Info.
Model NO: PQD-703 2 PINS
Ventilation: Closed
Brand: Bertie
Usage: Washing Machine
Certificate: CCC ISO 9001 ISO14001
Pins : 2 Pins
Voltage 220V/110V
Working Stroke 26mm
Trademark : bertie
Specification: 220v 110v
Origin: China
HS Code: 8501109990
